ø16 mm range

ø16 mm Mushroom Push Buttons

ø16 mm mushroom-head push buttons and E-stop actuators.

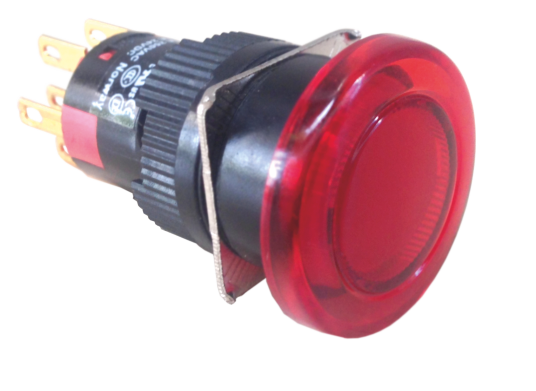

40 Series ø16 mm mushroom-head push button switch — red

40 Series

40 Series Mushroom Head Push Button Switch

Highlights

  • Choose between illuminated & non-illuminated switches & indicators with 16 mm (5/8″) shafts.
  • Choose from LEDs at 6 V, 12 V, 24 V, 110 V and 220 V for AC and DC.
  • Fits any application with round, square and rectangular bezel shapes.
  • Compact design to match the standard 16 mm (5/8″) drill hole.
  • In-built current-limiting resistor and gasketed lenses for LEDs.
  • Double-throw contacts provide perfect connectivity.
  • Contacts on all models are gold-plated for best possible connectivity.
  • Internal snap action provides unfailing switching and positioning.
  • Ideal for use in connection with PLCs.
  • Product range includes push-buttons, indicators, selector switches, key switches, key-reset switches and push-lock versions.
Download PDF

Mushroom Head Push Button Switch Part Number Selection

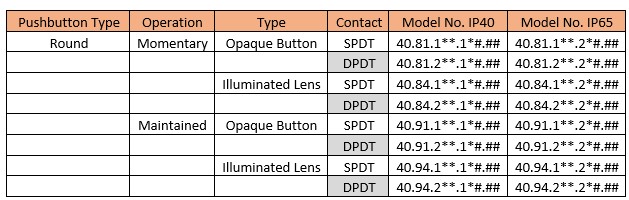

40 Series mushroom-head push button — model number table (pushbutton type, operation, contact, IP40 / IP65 model no.)

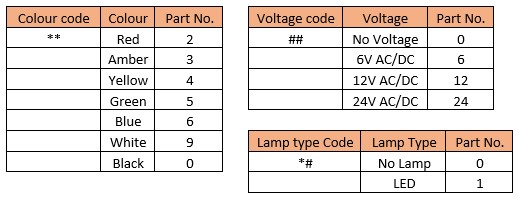

40 Series mushroom-head push button — colour, voltage and lamp-type code reference tables
