Control Components

Switches & Pilot Lights

  • Mounting ø16 / ø22
  • IP40 – IP65
  • Gold-plated contacts
32 Series

Jumbo Dome Pilot Lights

A ø66 mm dome lens for recognition at distance and from acute viewing angles.

32 Series jumbo dome pilot light

Specification

Mounting
ø22 mm
Lens
ø66 mm dome
Depth
Short behind panel
Protection
Low-voltage glow protected

Highlights

  • High brightness across the full dome
  • Clear recognition from a distance and from the side
32 Series datasheetPDF · 2025-04
40 Series

Switches & Pilot Devices

ø16 mm mounting, quick-connect terminals, gold-plated contacts — a compact all-round platform.

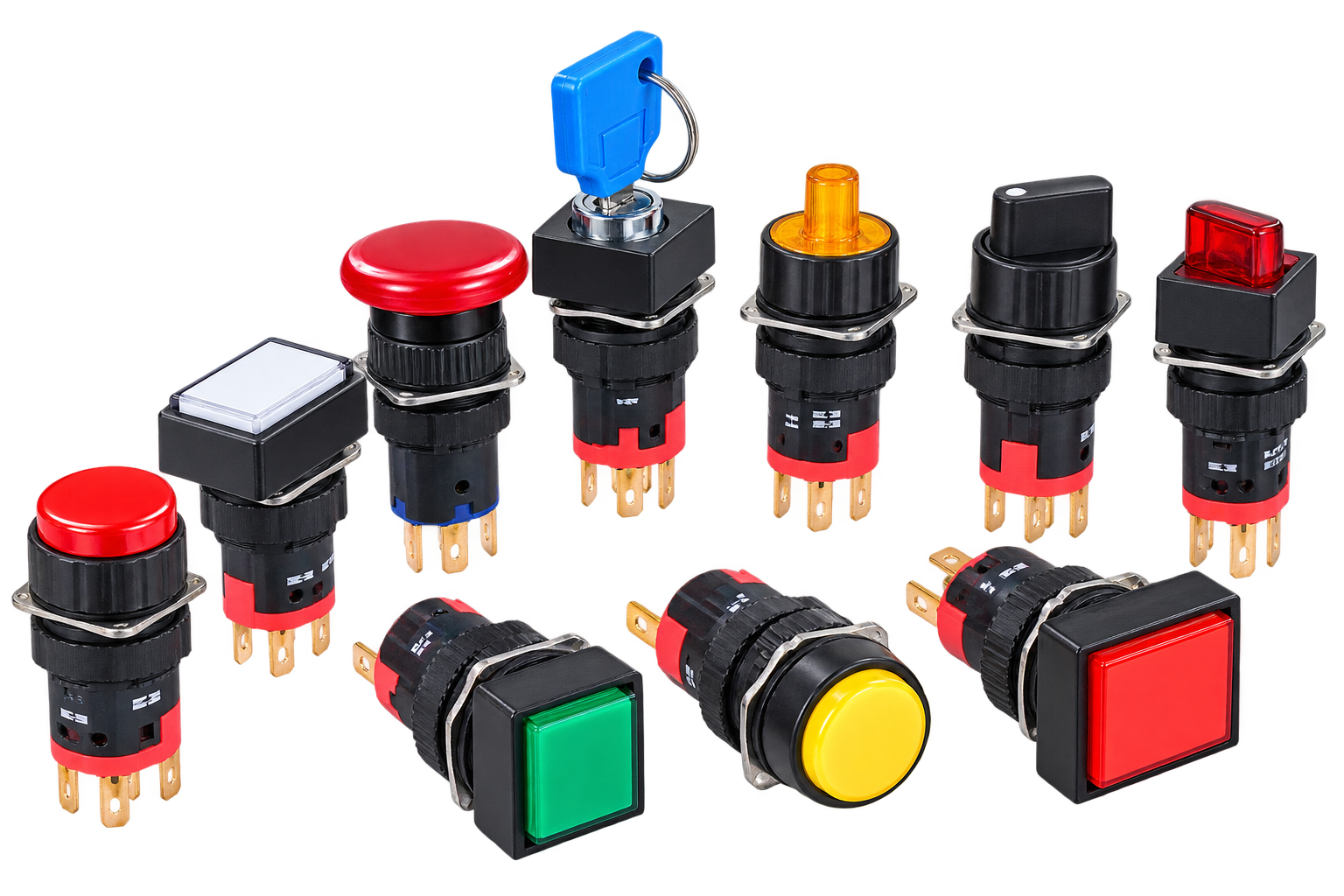

40 Series ø16 mm switch and pilot device

Specification

Mounting
ø16 mm
Contacts
SPDT / DPDT
Protection
IP40 / IP65
Terminals
.110″ quick-connect / solder
Material
Gold-plated contacts & terminals

Highlights

  • Range covers illuminated E-stop, selector and flush illuminated push buttons
40 Series datasheetPDF · 2024-07
41 Series

Switches & Pilot Devices

ø16 mm platform extended for high-contact-count applications and seismic zone 3 installations.

41 Series ø16 mm switch and pilot device

Specification

Mounting
ø16 mm
Contacts
1NO+1NC – 5NO+5NC
Protection
IP40 / IP65
Certification
Seismic zone 3
Illumination
Midget-base LED
Material
Gold-plated contacts & terminals

Highlights

  • Extended range: illuminated E-stop, selector, key switch, 220 VAC pilot light
41 Series datasheetPDF · 2025-04
43 Series

Rotary Cam Switches

Multi-position rotary cam switches for AC and DC circuits — 6 A to 63 A across the range.

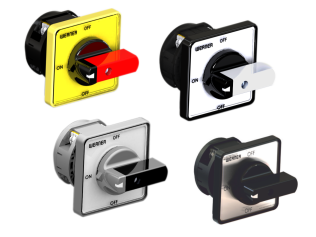

43 Series rotary cam switch

Specification

Rated voltage
440 V AC 50 Hz / 240 V DC and below
Current
6, 10, 16, 20, 25, 32, 40, 63 A
Ambient temp.
Above −25 °C
Altitude
Up to 2000 m
Protection
IP55 (front)

Highlights

  • Suitable for all switching angles and spring-return positions
  • Front assembly available in five colours
43 Series datasheetPDF · 2024-09
45 Series

Switches & Pilot Devices — Nylon Bezel

ø22 mm platform with a nylon bezel and modular pilot lights — the volume-price variant.

45 Series ø22 mm switch with nylon bezel

Specification

Mounting
ø22 mm
Contacts
1NO, 1NC, 2NO, 2NC, 1NO+1NC — max 6 – 9
Protection
IP20 back / IP65 front
Material
Silver-copper alloy contacts
Illumination
Modular pilot lights, BA9S LED

Highlights

  • Low-cost build with modular pilot lights
45 Series datasheetPDF · 2026-01
45 Series

Switches & Pilot Devices — Metal Bezel

ø22 mm platform in a metal-coated bezel for premium panel finishes.

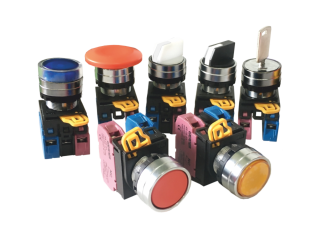

45 Series ø22 mm switch with metal bezel

Specification

Mounting
ø22 mm
Contacts
1NO, 1NC, 2NO, 2NC, 1NO+1NC — max 6
Protection
IP20 back / IP65 front
Material
Silver-copper alloy contacts
Bezel
Metal-coated

Highlights

  • Premium metal-bezel finish for visible-panel applications
45 Series datasheetPDF · 2025-04
45 Series

Unibody Pilot Lights

One-piece unibody pilot lights measuring 32 mm behind the panel — no separate lampholder.

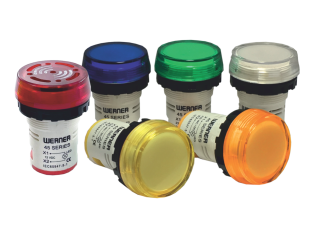

45 Series unibody pilot light

Specification

Depth
32 mm behind panel
Lens types
Flush, flush-with-marking, extended, dome
Protection
Glow protected up to 5% leakage voltage

Highlights

  • Unibody construction achieves high brightness in a compact profile
  • Panel-mount by tightening the locking ring — no separate lampholder
45 Series datasheetPDF · 2025-01
46 Series

Foot Switches

Floor-mounted foot switches for machine control — bright yellow body, anti-skid base.

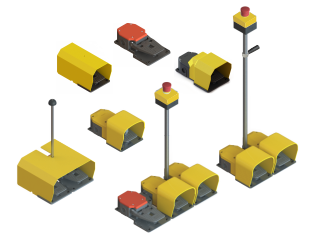

46 Series industrial foot switch

Specification

Contacts
SPDT, DPDT, 3PDT, 4PDT
Body
Aluminium die-cast
Protection
Top-protected and fully-protected variants

Highlights

  • Bright yellow finish for shop-floor visibility
  • Anti-skid base prevents movement in use
46 Series datasheetPDF · 2025-04
47 Series

Unibody Push Button

One-piece ø22 mm push button — momentary or maintained, flush or mushroom head.

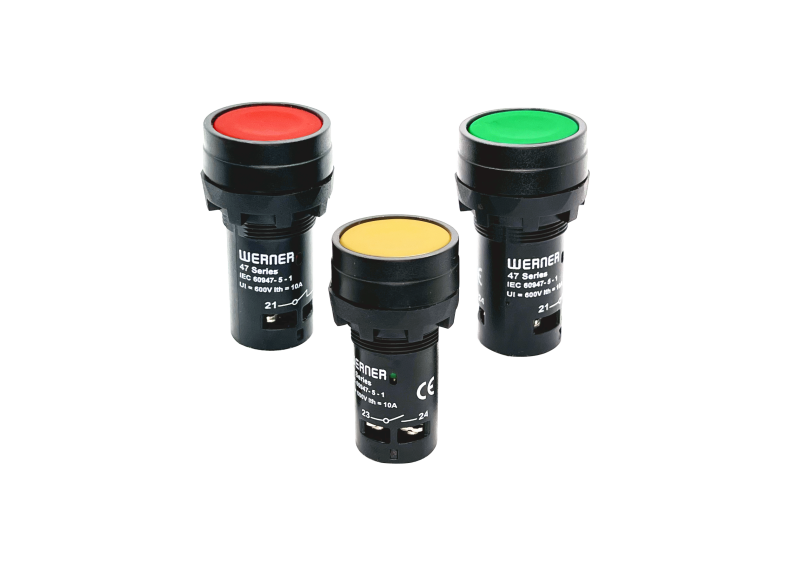

47 Series unibody push button

Specification

Mounting
ø22 mm
Function
Momentary / maintained
Operation
Flush / mushroom
Construction
Unibody, space-saving

Highlights

  • Panel-mount by tightening the locking ring
  • Compact and lightweight
47 Series datasheetPDF · 2024-10
48 Series

Limit Switches

General-purpose limit switches with 18 operator options and a 100,000-operation lifetime.

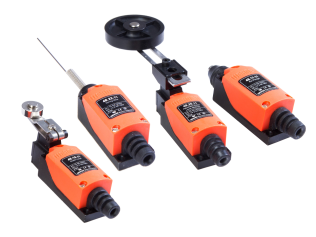

48 Series general-purpose limit switch

Specification

Operators
18 options
Actuator
Rotatable to any of 4 positions
Ground
With or without ground connection
Body
Aluminium die-cast
Life
100,000 operations (guaranteed)

Highlights

  • General-purpose platform for OEM machine builders
48 Series datasheetPDF · 2025-04
42 Series

Micro Switches

High-capacity micro switches — 15 A rated, wide actuator range, molded terminal safety cover.

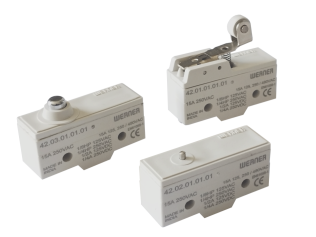

42 Series micro switch

Specification

Switching capacity
15 A
Contact gap
1.8 mm (high capacity)
Terminals
Molded with safety protective cover
Actuators
Wide range for varied applications
Micro-load models
Standard variants available

Highlights

  • High repeat accuracy across the full switching-capacity range
  • Molded terminals with protective cover for safety
42 Series datasheetPDF · 2025-04
