ø22 mm range

ø22 mm Push Buttons

Momentary and maintained push buttons on the ø22 mm platform.

45 Series

45 Series Push Button

Highlights

  • Modular, stack-able, with plastic bezel in 22 mm diameter.
  • Superior plastic bezels provide unique styling & contribute to aesthetics.
  • Compact light-weight construction.
  • IP20 finger-safe screw terminals.
  • High-brightness LED — low heat and long life.
  • Matted lens surface to reduce light reflection.
  • Wide viewing-lens angle.
  • Equipped with pure silver contacts with a self-cleaning action.
  • Illuminations in Red, Amber, Yellow, Green, White, Blue & Black.
  • Product range includes illuminated and non-illuminated indicators, push buttons, selector switches, key selector switches, mushroom-head emergency stop switches and twin switches.
Download PDF

Push-button Part Number Selection

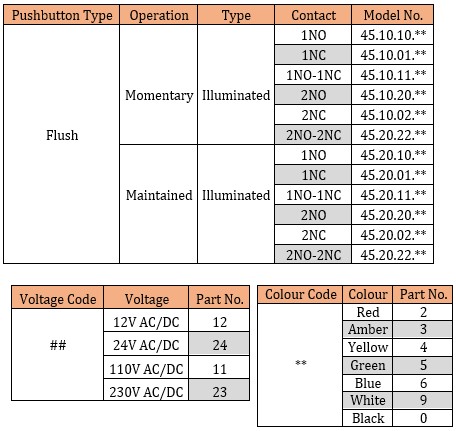

45 Series 22 mm push-button — model number table with voltage and colour code reference

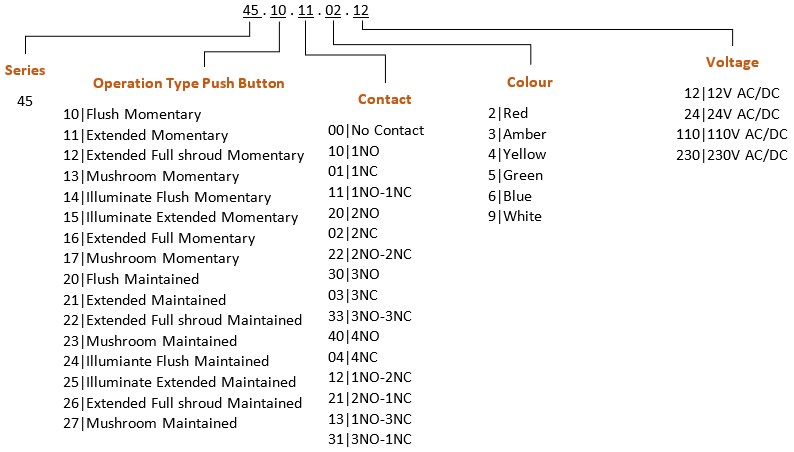

45 Series 22 mm push-button — part number selection breakdown
