Mosaic Mimic Board

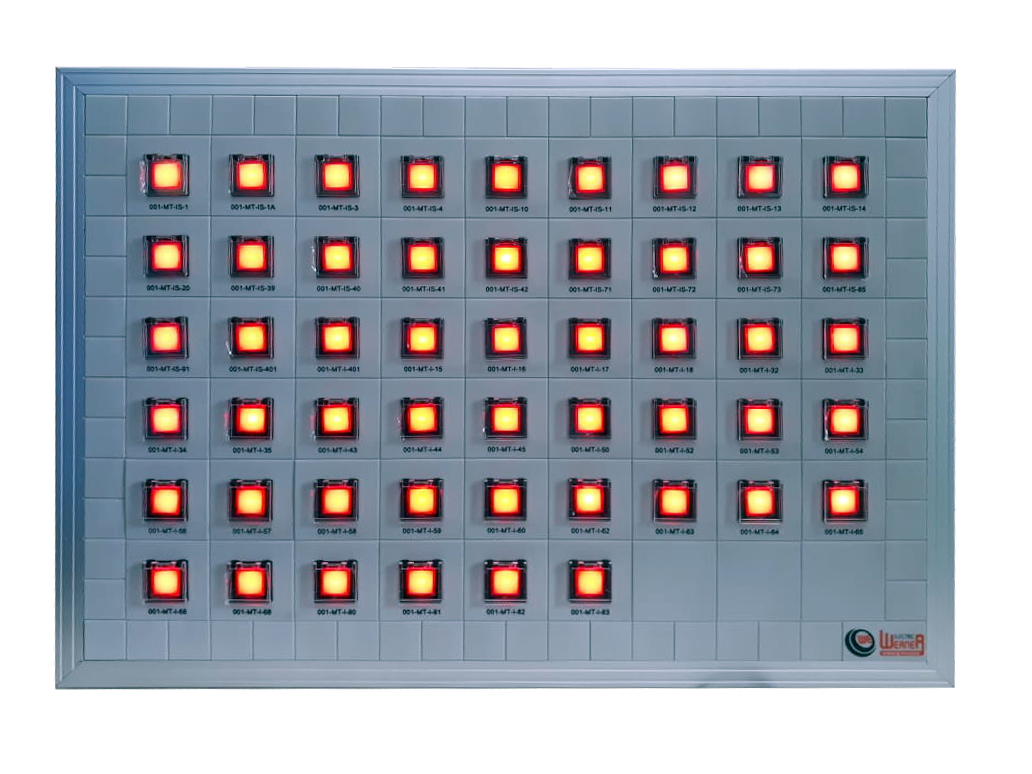

Werner Elektrik’s mosaic mimic boards use an aluminium grille system built on the regular framework of 24 × 24 mm, 24 × 48 mm and 48 × 48 mm tiles. The front face is made up of non-reflective plastic tiles on which the technological process or flow chart is represented pictorially. Internal wiring is designed to complement the entire module set within the mosaic framework — plastic cables are 2.20 m long and fitted with multi-pole connectors, and every row of terminal boards carries 25 pin insertion holes.
