SK Series

SK Series PCB Relay Socket

PCB-mount socket for G2R-1 (SPDT) plug-in relays — 5-pin snap/surface mount, solder tab terminals.

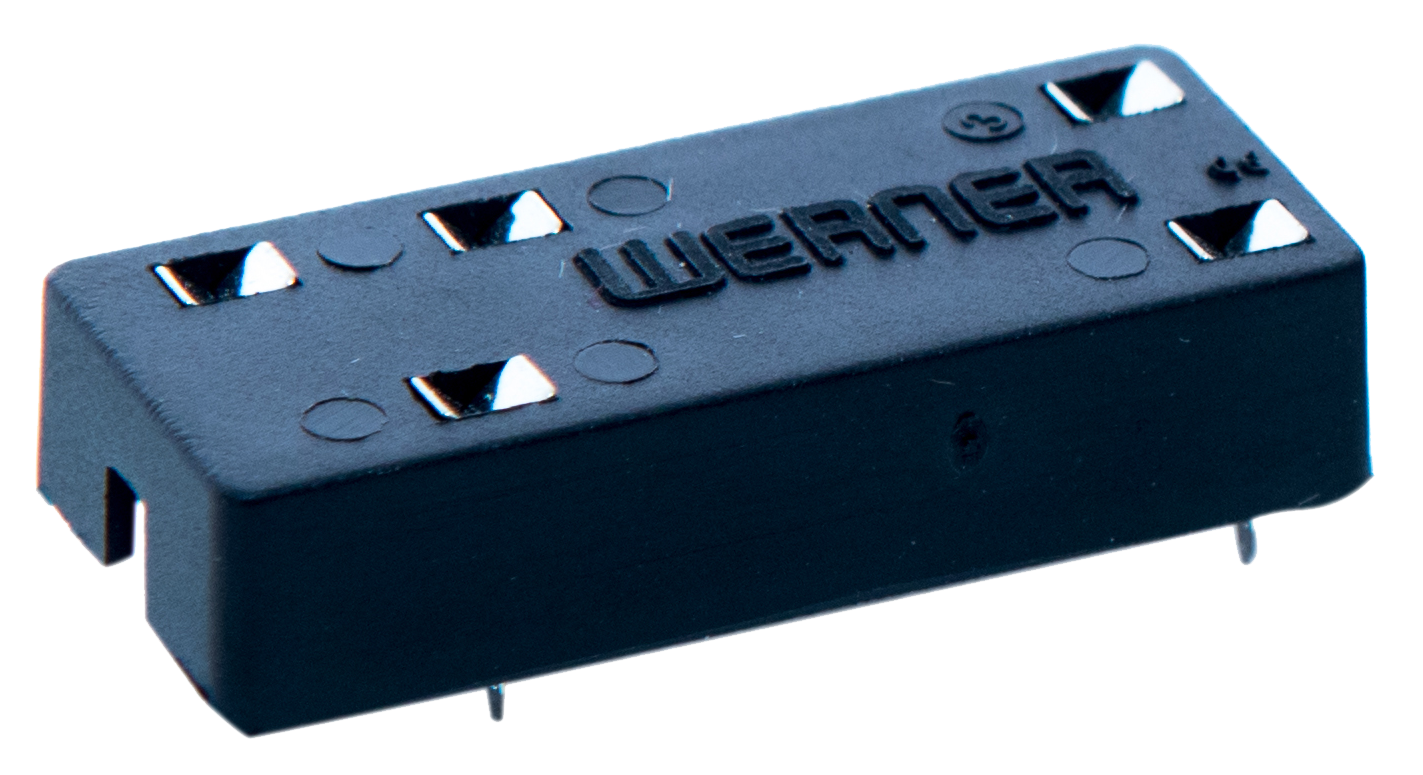

SK Series PCB relay socket — 5-pin snap/surface-mount body

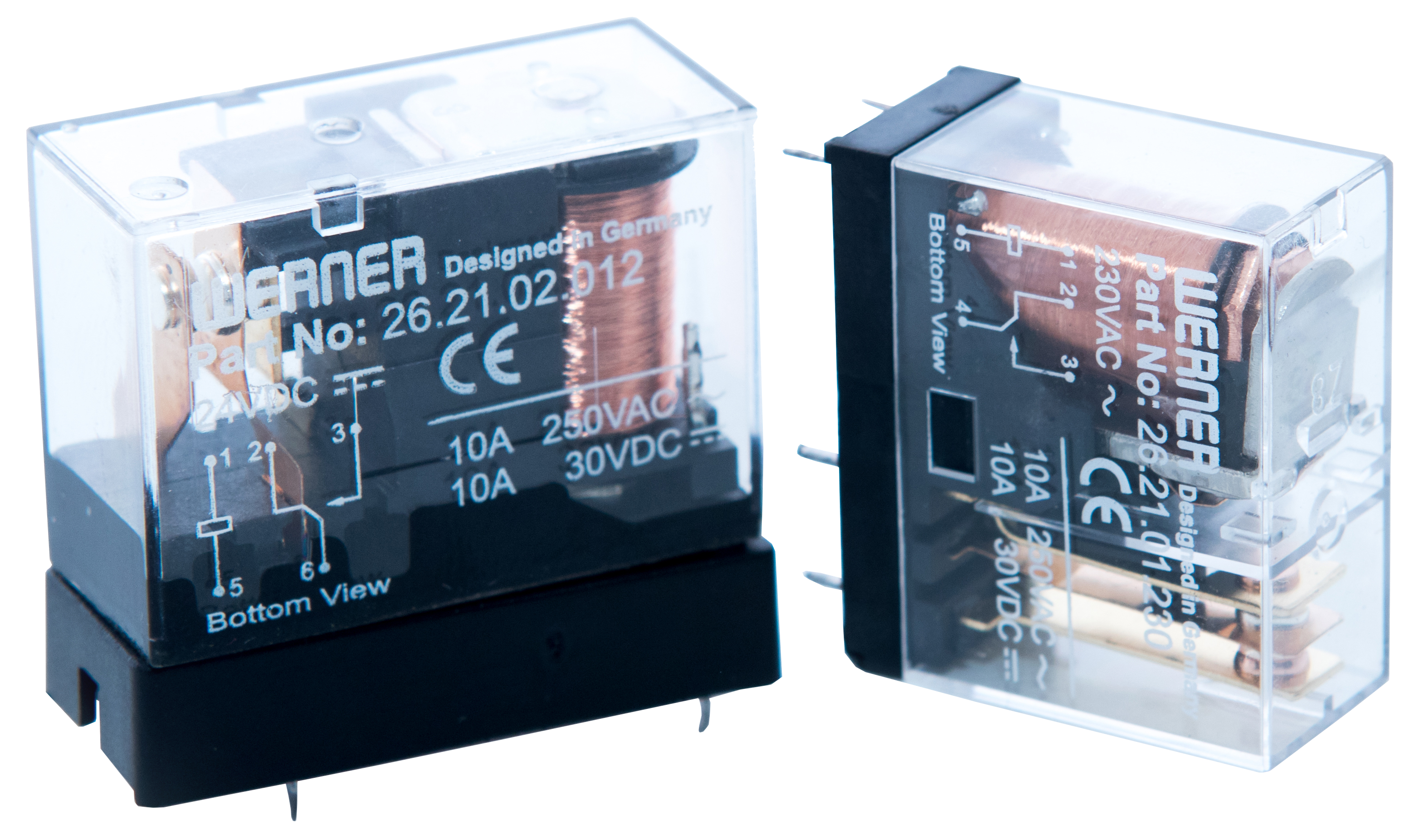

G2R-1 plug-in relays that mate with the SK Series socket — front and bottom view

SK Series

SK Series PCB Relay Socket

Highlights

  • Style: 5-pin, snap / surface mount.
  • Solder tab terminals.
  • Rated current: 12 A.
  • Rated voltage: 250 V AC/DC.
  • Dielectric strength: 5000 V (1 min) between coil & contact; 1000 V (1 min) between terminals of the same pole.
