SK Series

SK Series G2R Relay Socket

PCB-mount socket for G2R (DPDT) plug-in relays — 8-pin snap/surface mount, solder tab terminals.

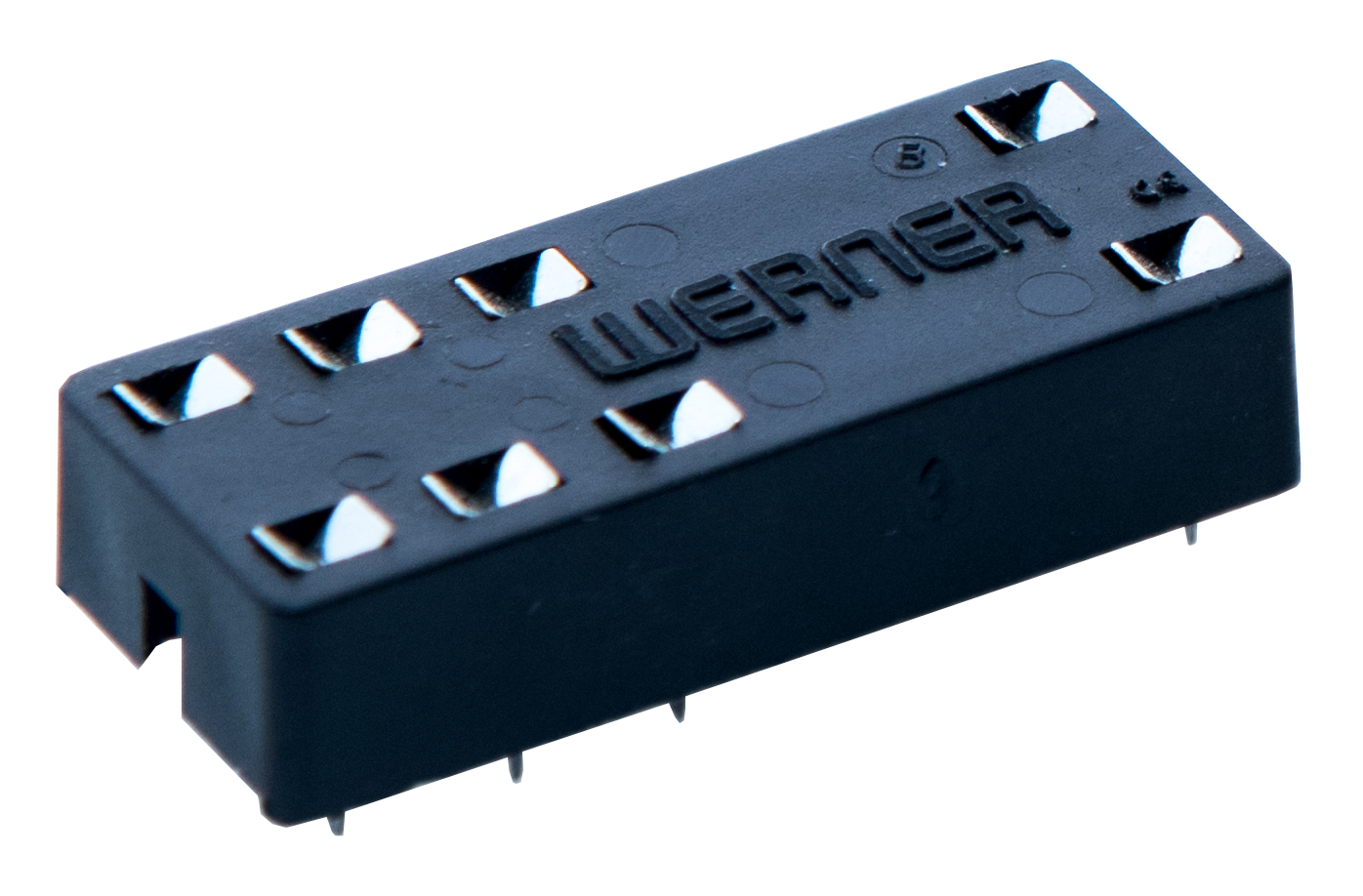

SK Series G2R relay socket — 8-pin snap/surface-mount body

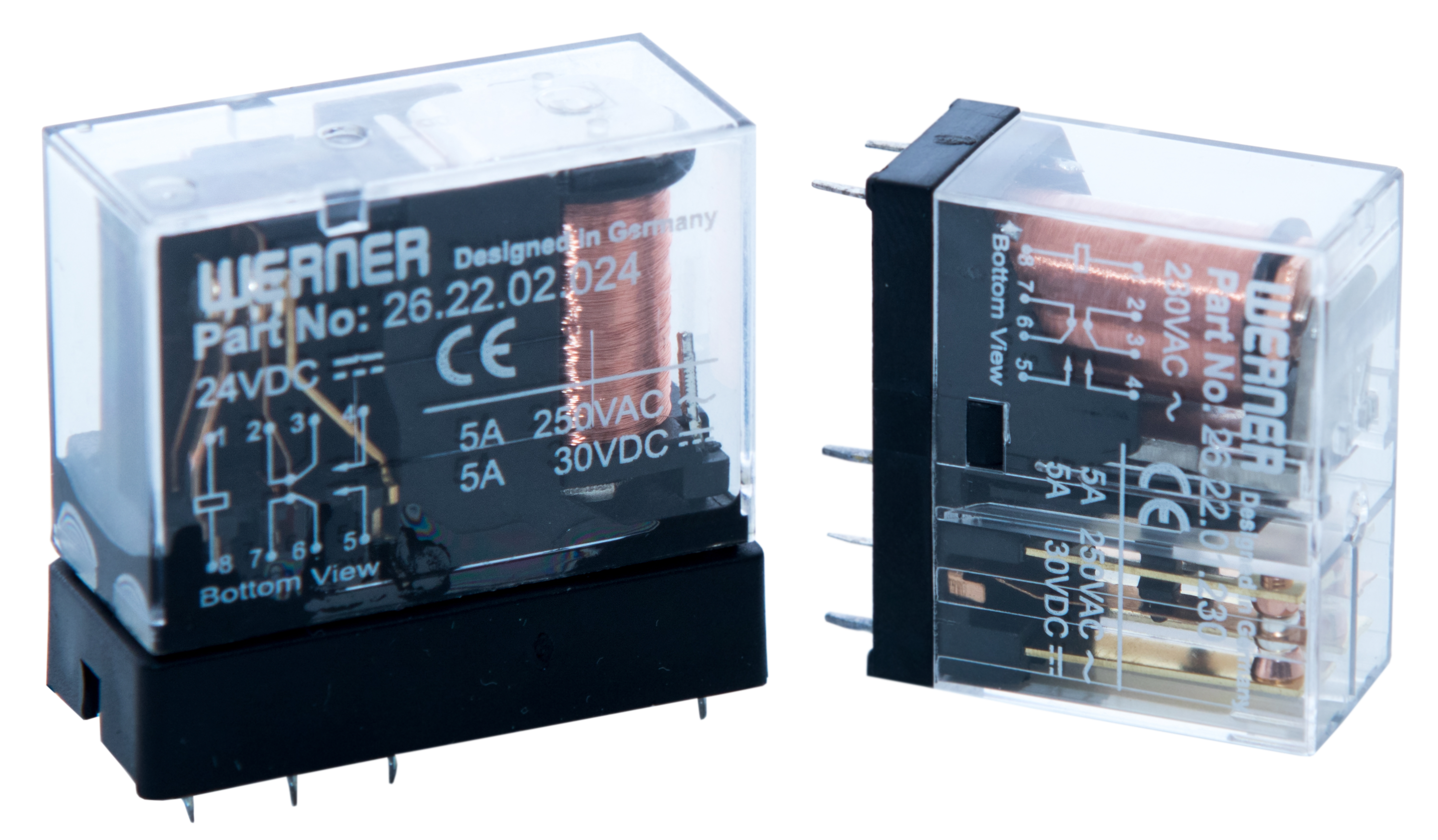

G2R plug-in relays that mate with the SK Series socket — front and bottom view

SK Series

SK Series G2R Relay Socket

Highlights

  • Style: 8-pin, snap / surface mount.
  • Solder tab terminals.
  • Rated current: 8 A.
  • Rated voltage: 250 V AC/DC.
  • Dielectric strength: 5000 V (1 min) between coil & contact; 1000 V (1 min) between terminals of the same pole.
